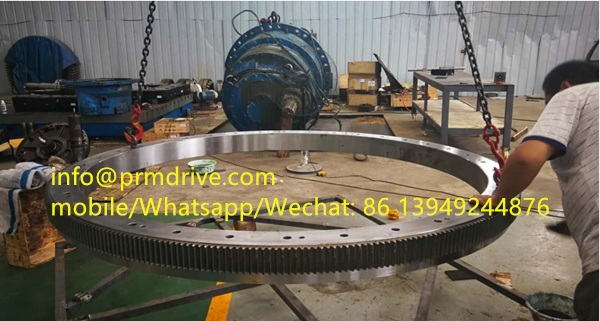

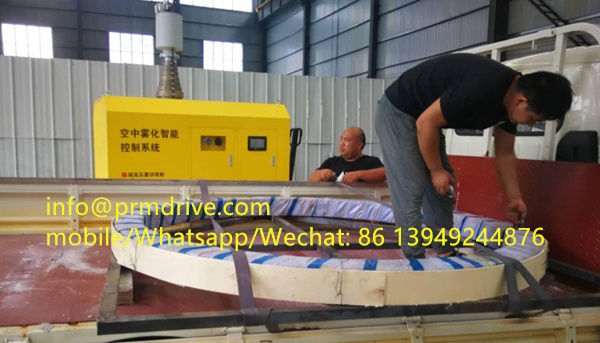

шлифовальный станок обработан зубчатыми кольцами / маятниковыми кольцами и поставлен клиентам.детали поворотных шестерен следующие.

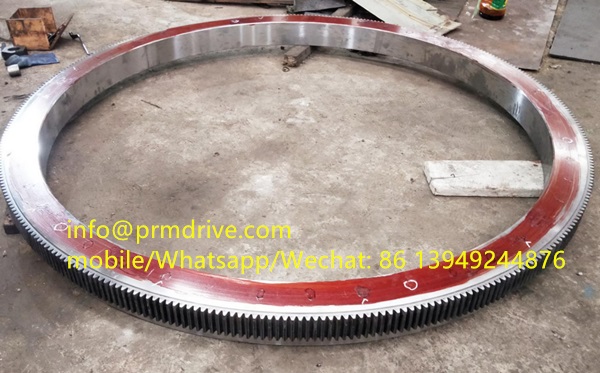

Product: swing gear
метр = 6
Z = 358
диаметр = 2161
класс точности: 6 класс шлифования зубов
материал: 42CrMo4
термообработка: QT240 — 260
профиль зуба: прямой зуб
The gear is ground with grinding machie Germany Niles gear grinder, it has CMM online test on the machine and we can provide gear grinding inspection such as tooth profile, tooth alignment and circular pitch.
If you interst in similar swing gear ring, please feel free to contact us per below.
| We are dedicated to provide you quality products and services, contact us now to start excellent service! | |
| Your contact person: | Ms. Perry |
| info@prmdrive.com, perry@prmdrive.com | |
| Mobile: | +86 13949244876 |
| Whatsapp: | +86 13949244876 |
| Skype: | perryglory |
| Wechat: | perryqian |
|
Related product and service
|
Gear wheel: spur gear, helical gear, internal gear,herringbone gear, bevel gear, worm and worm gear, pinion, gear rim; Shaft: gearshaft, pinion shaft, spline shaft, flange shaft, step shaft, threaded shaft;
Industrial gearbox:gearbox design, manufacture, repair and maintain/upgrade/on-site inspect/mapping and spare parts service;
Casting, forging, welding, machining; gear cutting, gear grinding;
Mining parts:steel ball, linear, end cover, hammer, rotary kiln tyre, support roller, hosing and etc
|
|||
|
Product quality
|
Ra0.4, Ra0.8 and Ra1.6 with grinding( ISO5, 6, 7)
|
|||
|
Material |
as per drawing, also recommend the upgraded material, Common material(ISO or EN standard):
QT: C45(1.0503), 34CrMo4(1.7220), 42CrMo4(1.7225), 36CrNiMo4(1.6511), 31CrNiMo8(1.6580), 34CrNiMo6(1.6582),41CrAIMo74(GB38CrMoAi) Carburizing: 18CrNiMo7(1.6587), 16MnCr5(1.7131) |
|||
|
Standard
|
as per drawing and techanical requirement, GB, EN, DIN, ASTM, GOST, JIS,BS, SS, CSN, ISO
|
|||
|
Produce process
|
forging, casting, welding, heat treatment, turning, gear cutting, milling, drilling, machining, CNC machining, grinding
|
|||
|
Heat treatment
|
QT, Carburizing, nitriding, tooth surface quenching |
|||
|
Inspection
|
Material chemical composition test,Dimension and visual inspect, hardness test,Ultrasonic inspection,Surface roughness test,mechanical property test, three coordiates test, Magnetic particle test
|
|||
|
Application
|
Mining, consturction, cement, rolling,metallurgy, power, general engineering and etc.
|
|||
